Product Specification / Description

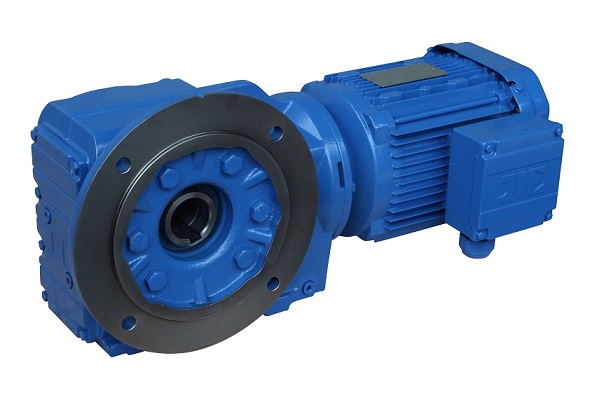

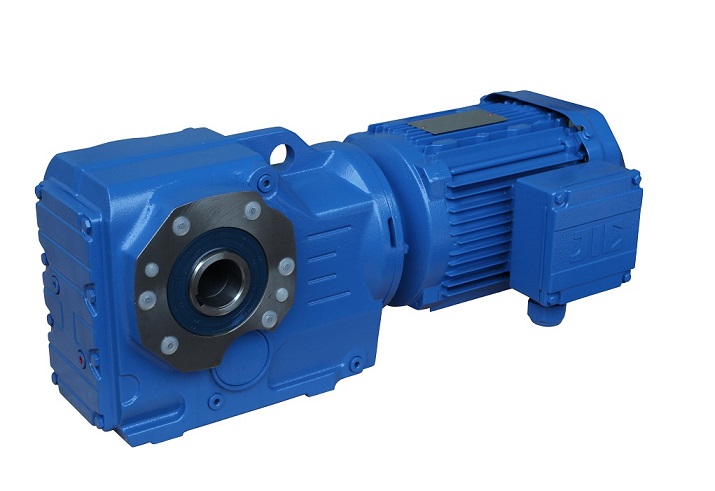

FEM bevel gearbox consisted of double stage and triple stage reduction to suit varies kind of application.
It has a higher efficiency on power transmission and able to have higher input and output rating.

• Twelve Sizes: 37,47,57,67,77,87,97,107,127, 157,167,187
• Output Shafts - Solid, Hollow with Key/Shrink Disc
• Output Flanges - B14 & B5, Torque Arm
• Mounting - B3, B5, V1
• Input rating up to 200kW
• Nominal torque rating up to 50000Nm
• IEC Adaptor that suit any IEC Motor
